TSH-100/0.5
Boyuan
8504220000

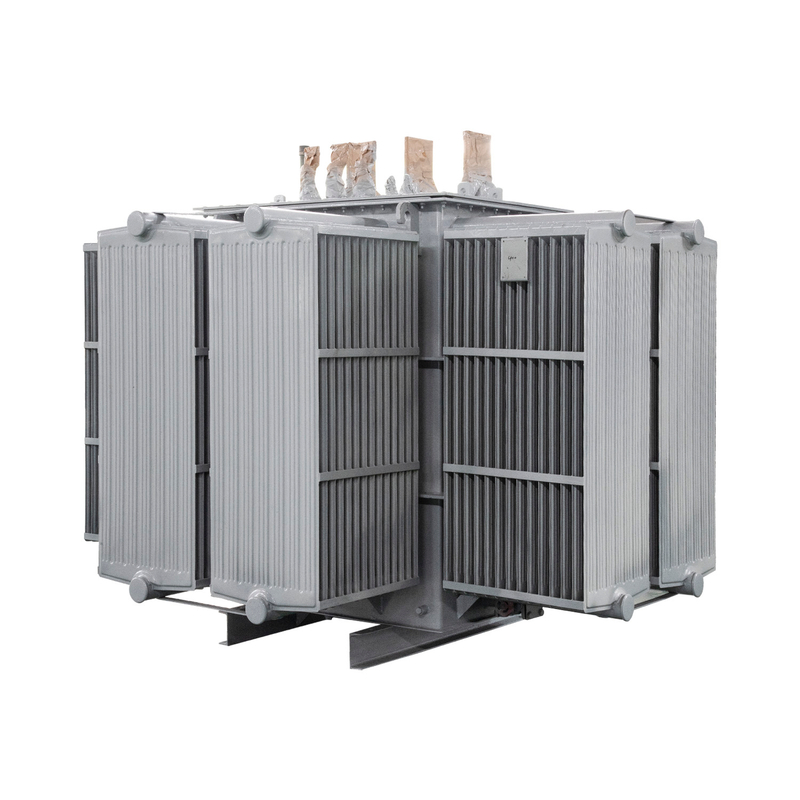

Description of copper 100kva vertical furnace magnetic voltage regulator
Magnetic voltage regulator made up of transformer and saturated reactor, composed of two parts, its work process is the use of regulation characteristics of saturated reactance to change power voltage in the transformer primary winding (WB1) reactance winding (WG) on the distribution ratio, so as to adjust the second output voltage
Magnetic voltage regulator specified voltage range is aimed at rated load resistance, if the actual use load resistance is not equal to the rated value, voltage regulator range changes, particularly obvious will be in the voltage lower limit region. Therefore, the general magnetic voltage regulator is not suit for no-load voltage.
Magnetic voltage regulator containing saturated reactor, due to its current limiting effect, therefore can obtain a good drop characteristic, but load voltage waveform distortion, the distortion degree is related to the size of output power.
| Model NO. | Rated capacity (KVA) | Rated input voltage (V) | Range of input voltage (V) | Loss(W) | No-load current (%) | DC control power(W) | DC control current (A) | Weight (Kg) | Overall size(mm) L*W*H | |
| No-load | load | |||||||||
| TDH2-30/0.5 | 30 | 220 380 | 5-35 7-70 | 150 | 1850 | 2.5 | 530 | 10 | 740 | 1080*900*1140 |
| TDH2-40/0.5 | 40 | 170 | 2500 | 2.5 | 650 | 10 | 860 | 1125*870*1290 | ||
| TDH2-50/0.5 | 50 | 190 | 3000 | 2.5 | 720 | 10 | 1010 | 1160*900*1400 | ||
| TDH2-63/0.5 | 63 | 220 | 3600 | 2.5 | 920 | 10 | 1215 | 1235*1000*1585 | ||
| TDH2-80/0.5 | 80 | 270 | 4200 | 2.5 | 1100 | 15 | 1470 | 1240*1030*1535 | ||
| TDH2-100/0.5 | 100 | 320 | 5000 | 2.5 | 1320 | 20 | 1720 | 1260*1030*1575 | ||
| TDH2-125/0.5 | 125 | 370 | 5500 | 2 | 1650 | 20 | 1970 | 1285*1050*1675 | ||
| TDH2-160/0.5 | 160 | 460 | 7500 | 2 | 1800 | 20 | 2385 | 1325*1100*1735 | ||
| TDH2-200/0.5 | 200 | 540 | 10000 | 2 | 2030 | 20 | 3065 | 1525*1205*1860 | ||
| TDH2-250/0.5 | 250 | 640 | 11500 | 2 | 3690 | 20 | 3520 | 1585*1205*2040 | ||
| TDH2-315/0.5 | 315 | 760 | 12500 | 1.8 | 3050 | 40 | 4490 | 1715*1280*2200 | ||
| TDH2-400/10 | 400 | 920 | 13700 | 1.8 | 3200 | 40 | 5330 | 2370*1295*2750 | ||
| TDH2-500/10 | 500 | 10000 (6300) | 20-140 40-280 25-85 40-100 | 1080 | 15200 | 1.6 | 3440 | 40 | 5870 | 2450*1325*2780 |
| TDH2-630/10 | 630 | 1300 | 17700 | 1.6 | 3640 | 40 | 7250 | 2450*1395*2890 | ||
| TDH2-800/10 | 800 | 1540 | 22000 | 1.6 | 4500 | 40 | 8760 | 2750*1650*3180 | ||
| TDH2-1000/10 | 1000 | 1800 | 26000 | 1.6 | 5000 | 40 | 10100 | 2850*1800*3245 | ||
| TDHSP-1250/10 | 1250 | 2150 | 32500 | 1.4 | 5800 | 40 | 11800 | 2900*1800*3350 | ||
| TDHSP-1600/10 | 1600 | 2550 | 42000 | 1.3 | 6120 | 60 | 13500 | 3000*1800*3450 | ||
| TDHSP-2500/10 | 2500 | 3550 | 54000 | 0.8 | 9000 | 60 | 16500 | 2300*1925*3500 | ||
| TDGH-20/0.5 | 20 | 380 220 | 5-35 7-70 20-140 | 100 | 1150 | 3 | 240 | 5 | 350 | 850*450*740 |
| TDGH-30/0.5 | 30 | 115 | 1560 | 3 | 350 | 7 | 440 | 900*480*740 | ||
| TDGH-40/0.5 | 40 | 150 | 1950 | 2.5 | 385 | 7 | 540 | 940*500*840 | ||
| TDGH- 50/0.5 | 50 | 190 | 2300 | 2.5 | 490 | 7 | 760 | 1320*590*1400 | ||
| TDGH-63/0.5 | 63 | 240 | 2750 | 2.5 | 600 | 10 | 880 | 1380*620*1440 | ||
| TDGH-80/0.5 | 80 | 285 | 3300 | 2.2 | 700 | 10 | 1080 | 1440*650*1520 | ||
| TDGH-100/0.5 | 100 | 335 | 3900 | 2.2 | 800 | 20 | 1320 | 1480*660*1540 | ||
| TDGH-125/0.5 | 125 | 400 | 4500 | 2 | 900 | 20 | 1580 | 1550*680*1600 | ||
| TSGH-30/0.5 | 30 | 380 (415) | 5-35 5-40 7-70 8-80 | 200 | 1620 | 2.5 | 350 | 7 | 640 | 1380*580*1200 |
| TSGH-40/0.5 | 40 | 245 | 2000 | 2.5 | 430 | 7 | 790 | 1420*600*1280 | ||
| TSGH-50/0.5 | 50 | 310 | 2500 | 2 | 620 | 10 | 850 | 1450*620*1350 | ||
| TSGH-63/0.5 | 63 | 340 | 2750 | 2 | 800 | 10 | 1020 | 1520*650*1450 | ||
| TSGH-80/0.5 | 80 | 370 | 3100 | 1.6 | 950 | 10 | 1240 | 1550*670*1500 | ||
| TSGH-90/0.5 | 90 | 400 | 3550 | 1.6 | 1020 | 10 | 1300 | 1600*680*1550 | ||
| TSGH-100/0.5 | 100 | 480 | 3850 | 1.5 | 1120 | 10 | 1450 | 1630*700*1650 | ||
| TSGH-125/0.5 | 125 | 550 | 4550 | 1.5 | 1300 | 20 | 1700 | 1690*730*1700 | ||
| TSGH-160/0.5 | 160 | 680 | 5250 | 1.4 | 1500 | 20 | 2000 | 1780*760*1820 | ||
| TSGH-180/0.5 | 180 | 720 | 5800 | 1.4 | 1650 | 20 | 2200 | 1800*780*1840 | ||
| TSGH-200/0.5 | 200 | 750 | 6300 | 1.2 | 1750 | 20 | 2320 | 1850*800*1850 | ||
| TSGH-250/0.5 | 250 | 840 | 7500 | 1 | 2100 | 20 | 2750 | 1900*880*1950 | ||
| TSH-30/0.5 | 30 | 380 (415 6300 10000 | 5-17.5 5-20 5-30 5-35 5-40 6-60 7-70 | 175 | 2250 | 2.5 | 600 | 5 | 830 | 940*1050*1250 |
| TSH-40/0.5 | 40 | 220 | 2850 | 2.5 | 810 | 5 | 980 | 980*1080*1300 | ||
| TSH-50/0.5 | 50 | 260 | 3250 | 2.5 | 900 | 10 | 1280 | 1000*1100*1420 | ||
| TSH-63/0.5 | 63 | 300 | 3900 | 2.2 | 1100 | 15 | 1480 | 1080*1100*1500 | ||
| TSH-80/0.5 | 80 | 350 | 4800 | 2.2 | 1260 | 15 | 1680 | 1100*1160*1580 | ||
| TSH-100/0.5 | 100 | 420 | 5750 | 2 | 1500 | 15 | 1850 | 1150*1180*1700 | ||
| TSH-125/0.5 | 125 | 455 | 6900 | 2 | 1800 | 20 | 2100 | 1180*1200*1750 | ||
| TSH-150/0.5 | 150 | 480 | 7800 | 1.8 | 2100 | 20 | 2300 | 1200*1200*1820 | ||
| TSH-160/0.5 | 160 | 500 | 8500 | 1.8 | 2200 | 20 | 2400 | 1200*1280*1840 | ||
| TSH-200/0.5 | 200 | 550 | 9600 | 1.8 | 2500 | 20 | 2800 | 1250*1300*1880 | ||
| TSH-250/0.5 | 250 | 650 | 11200 | 1.6 | 2700 | 20 | 3500 | 1520*1250*2100 | ||
| TSH-315/0.5 | 315 | 780 | 12800 | 1.5 | 2900 | 20 | 4000 | 1700*1310*2180 | ||
| TSH-400/0.5 | 400 | 940 | 15800 | 1.4 | 3200 | 20 | 4750 | 1780*1350*2200 | ||
| TSH-500/0.5 | 500 | 1060 | 17800 | 1.4 | 5760 | 40 | 5400 | 1820*1320*2240 | ||
| TSH-630/10 | 630 | 1200 | 22800 | 1 | 6000 | 40 | 7200 | 2370*1600*3200 | ||
| TSH-1250/10 | 1250 | 2600 | 39800 | 0.9 | 10200 | 60 | 12800 | 2770*2000*3240 | ||
