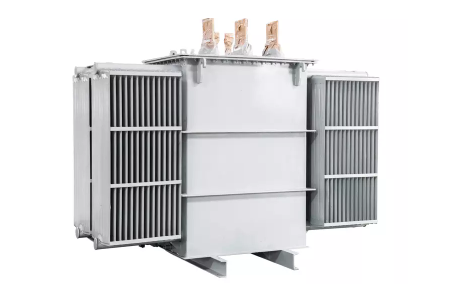

Why use magnetic voltage regulators?

magnetic voltage regulator is a kind of voltage regulation equipment, because of its superior performance and advanced control mode is widely used. What is the function of magnetic regulator? What are the benefits of using magnetic type voltage regulators?

What is the application of magnetic voltage regulator?

What is the working principle of magnetic voltage regulator?

What are the advantages of magnetic voltage regulator?

What is the application of magnetic voltage regulator?

magnetic voltage regulator is mainly used in various thermal processing and heat treatment systems as a supporting voltage regulation power supply, with stepless smooth voltage regulation, closed-loop automatic control, strong short-circuit resistance and other hot spot, currently in salt bath furnace, air furnace, ESslag vertical furnace, single crystal furnace, cracking furnace, vertical furnace, as well as glass industry electric furnace, aluminum silicate refractory fiber industry has been widely used.

What is the working principle of magnetic voltage regulator?

1. magnetic type voltage regulator is a voltage regulator without mechanical transmission and contactless, which can be used for smooth stepless voltage regulation with load. The voltage regulation function is realized by DC control, which can be manually controlled by open loop or automatically controlled by different control signals.

2. Simply put, the magnetic voltage regulator can be regarded as a variable reactor in series with the load. When the excitation current is 0, the iron core is unsaturated and its magnetic conductivity is large. At this time, the reactance value is also the maximum, and most of the supply voltage falls on the working windings of the reactor, while the voltage drop on the load is the minimum. When the excitation current increases, the saturation degree of the iron core increases, the magnetic conductivity decreases, and the reactance value correspondingly decreases. At this time, the voltage drop on the working windings of the reactor decreases, while the load voltage increases, so as to achieve the purpose of adjusting the load voltage.

What are the advantages of magnetic voltage regulator?

1. Because the magnetic voltage regulator has the function of saturated reactor inside, the reactance device has the limited current function, so it can obtain better falling external characteristics, overload capacity is strong, especially the load short-circuit capacity is incomparable to other transformers.

2. magnetic voltage regulator as the actuator, because of the large time constant, the system is very stable, has a high anti-interference ability.

3. As a voltage regulating power supply equipment, under reasonable use conditions, the performance is reliable and stable, the failure rate is basically zero, can be regarded as permanent equipment.

4. Simple operation, high control precision, easy maintenance. Manual voltage regulation only need to rotate the excitation control cabinet panel potentiometer, can be adjusted at will.

5. The heating starts fast, the heat preservation effect is good, the furnace temperature fluctuates in the linear state, thus improving the quality of products, improve the production efficiency of g library

6. Without phase shift, the phase Angle of the output voltage of the magnetic voltage regulator does not change with the increase or decrease of the voltage, thus ensuring the electrical phase balance in the tight kiln.
