| Colour: | |
|---|---|
| Cooling way: | |
| Winding Material: | |
| Type : | |
| Quantity: | |
HJSSP-2400/10
Boyuan
8504220000

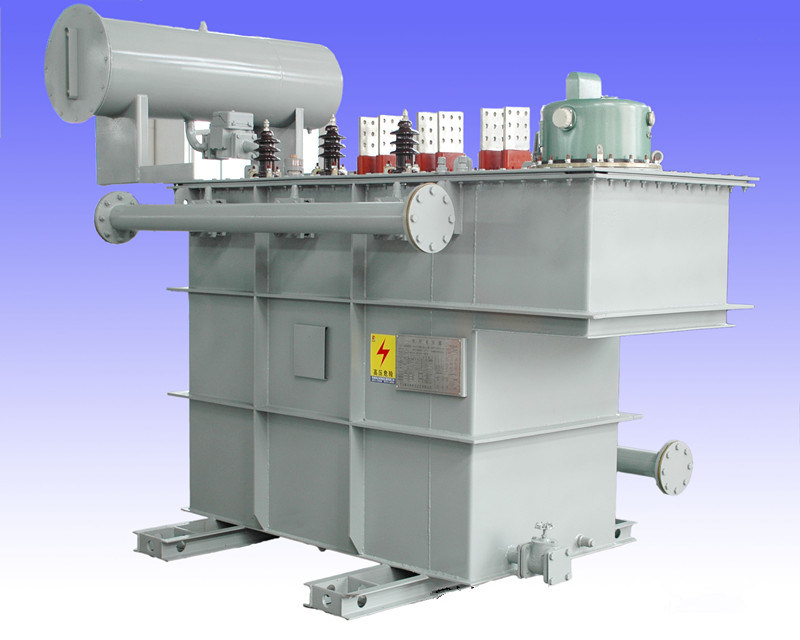

Description of power supply 10kv furnace transformer for steel making
Model: HJSSP-2400/10
Rated Capacity: 2400KVA
Rated Primary Voltage: 10KV
Rated Secondary Voltage: 180、170、160V/104、98、92.5V
Vector Group: D-Y/do-11
Body Weight: 4200KGS
Oil Weight: 2200KGS
Total Weight: 8500KGS
Dimension (L*W*H/Lifting height): 2600*1800*3000/5000mm
Gauge(Horizontal/Vertical): 1070/1070mm
Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics and operation modes ,which mainly including steelmaking electric arc furnace transformer,ladle refining furnace transformer, electroslag re-melting furnace transformer and submerged arc furnace smelting transformer. submerged arc furnace includes: calcium carbide furnace, ferroalloy furnace,yellow phosphorus furnace,silicon manganese alloy furnace. In addition, there is also various exchange furnace transformers such power frequency furnace transformer etc.
The main features of our furnace transformers: designed according to national industry standards and different electric furnace process, low loss,smelt of high efficiency,reliable operation and so on. Its structure: no reactor and reactor, also has large impedance and small impedance to meet the demand.
Description of power supply 10kv furnace transformer for steel making
Model: HJSSP-2400/10
Rated Capacity: 2400KVA
Rated Primary Voltage: 10KV
Rated Secondary Voltage: 180、170、160V/104、98、92.5V
Vector Group: D-Y/do-11
Body Weight: 4200KGS
Oil Weight: 2200KGS
Total Weight: 8500KGS
Dimension (L*W*H/Lifting height): 2600*1800*3000/5000mm
Gauge(Horizontal/Vertical): 1070/1070mm
Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics and operation modes ,which mainly including steelmaking electric arc furnace transformer,ladle refining furnace transformer, electroslag re-melting furnace transformer and submerged arc furnace smelting transformer. submerged arc furnace includes: calcium carbide furnace, ferroalloy furnace,yellow phosphorus furnace,silicon manganese alloy furnace. In addition, there is also various exchange furnace transformers such power frequency furnace transformer etc.
The main features of our furnace transformers: designed according to national industry standards and different electric furnace process, low loss,smelt of high efficiency,reliable operation and so on. Its structure: no reactor and reactor, also has large impedance and small impedance to meet the demand.
