HJSSPZ-12000/35
Boyuan
8504220000

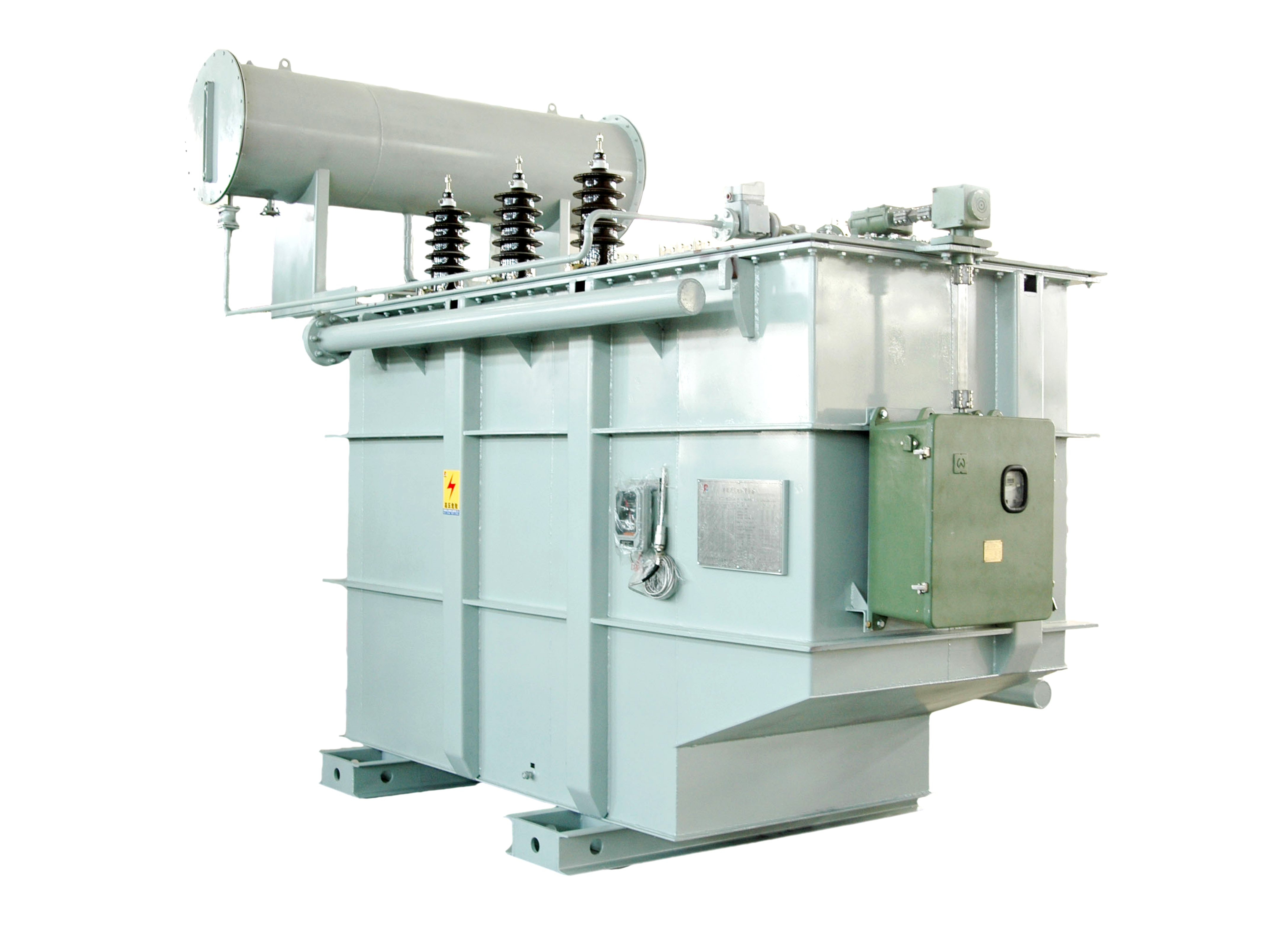

Description of ISO9001 35kv furnace transformer for AC furnace
Model: HJSSPZ-12000/35
Rated Capacity: 12000KVA
Rated Primary Voltage: 35KV
Rated Secondary Voltage: 150-260V/13step
Vector Group: Y/d11
Body Weight: 16000KGS
Oil Weight: 10000KGS
Total Weight: 32600KGS
Dimension (L*W*H/Lifting height): 4000*2750*4550/7500mm
Gauge(Horizontal/Vertical): 1505/1505mm
Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics and operation modes ,which mainly including steelmaking electric arc furnace transformer,ladle refining furnace transformer, electroslag re-melting furnace transformer and submerged arc furnace smelting transformer. submerged arc furnace includes: calcium carbide furnace, ferroalloy furnace,yellow phosphorus furnace,silicon manganese alloy furnace. In addition, there is also various exchange furnace transformers such power frequency furnace transformer etc.
The main features of our furnace transformers: designed according to national industry standards and different electric furnace process, low loss,smelt of high efficiency,reliable operation and so on. Its structure: no reactor and reactor, also has large impedance and small impedance to meet the demand.
Description of ISO9001 35kv furnace transformer for AC furnace
Model: HJSSPZ-12000/35
Rated Capacity: 12000KVA
Rated Primary Voltage: 35KV
Rated Secondary Voltage: 150-260V/13step
Vector Group: Y/d11
Body Weight: 16000KGS
Oil Weight: 10000KGS
Total Weight: 32600KGS
Dimension (L*W*H/Lifting height): 4000*2750*4550/7500mm
Gauge(Horizontal/Vertical): 1505/1505mm
Furnace transformer is the power transformer for industrial furnace smelting use, it is special transformer designed on the basis of various electric furnace's work characteristics and operation modes ,which mainly including steelmaking electric arc furnace transformer,ladle refining furnace transformer, electroslag re-melting furnace transformer and submerged arc furnace smelting transformer. submerged arc furnace includes: calcium carbide furnace, ferroalloy furnace,yellow phosphorus furnace,silicon manganese alloy furnace. In addition, there is also various exchange furnace transformers such power frequency furnace transformer etc.
The main features of our furnace transformers: designed according to national industry standards and different electric furnace process, low loss,smelt of high efficiency,reliable operation and so on. Its structure: no reactor and reactor, also has large impedance and small impedance to meet the demand.
